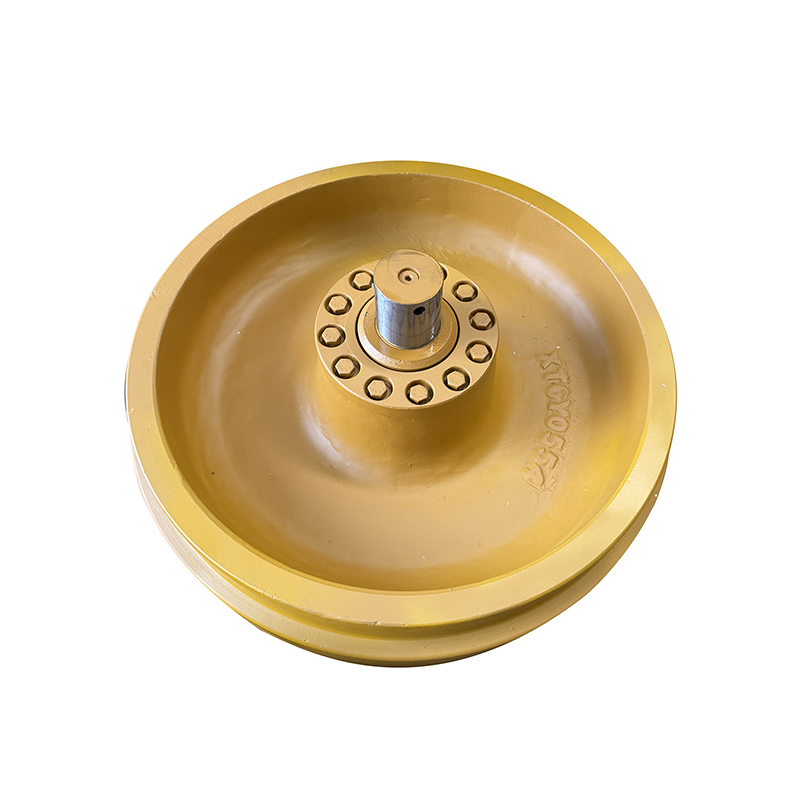

Caterpillar Bulldozer Idler D8N (620)

阅读：

Track links wear on the excavator track idlers running surface. Links and idlers wear as it were in line with each other. A specified wear value defines when the idler is 100% worn out. If the hardened section of the running surface is worn, then you should replace the idler.If the sides of the grousers show signs of wear, or the idler rubs against the side of the frame, then the track link is not in line with the idler. This may be caused by an open frame, worn side shoes, a broken axle or a defective tension device.

产品详情

Description

TACK idlers are available for the range of 0.8 to 100 ton. We produce the idlers using selected quality steel alloys and we apply induction hardening for optimal performance in extreme weather conditions. We assemble them using high quality seals . Experience has taught us that it is very important to subject the idlers’ running surface to a specific process; for this, we apply a special molding method to prevent the formation of gas in the material. Moreover, a specific heat treatment on the surface ensures better depth hardening and therefore a longer service life. We use a higher molding temperature and take extra time to allow the molded material to cool down in a controlled way. This prevents fissures from forming during the process.

Application

CATERPILLAR: D8N, D8R, D8T

Original Code

111-1729, 6Y0554, 7T3723, 9W9987, P01080N5M00, CR4531

Specification

Caterpillar Bulldozer Idler D8N (620)
Model No.	D8N (620mm)
OEM NO.	6Y0554
Material	50Mn
Technique	Forging
Weight	317KGS
Surface Hardness	52-56HRC
Hardness Deepth	8-12mm
Welding Operation	by ARC CO² welding
Machining Operation	CNC machine
Colors	Yellow or Black
