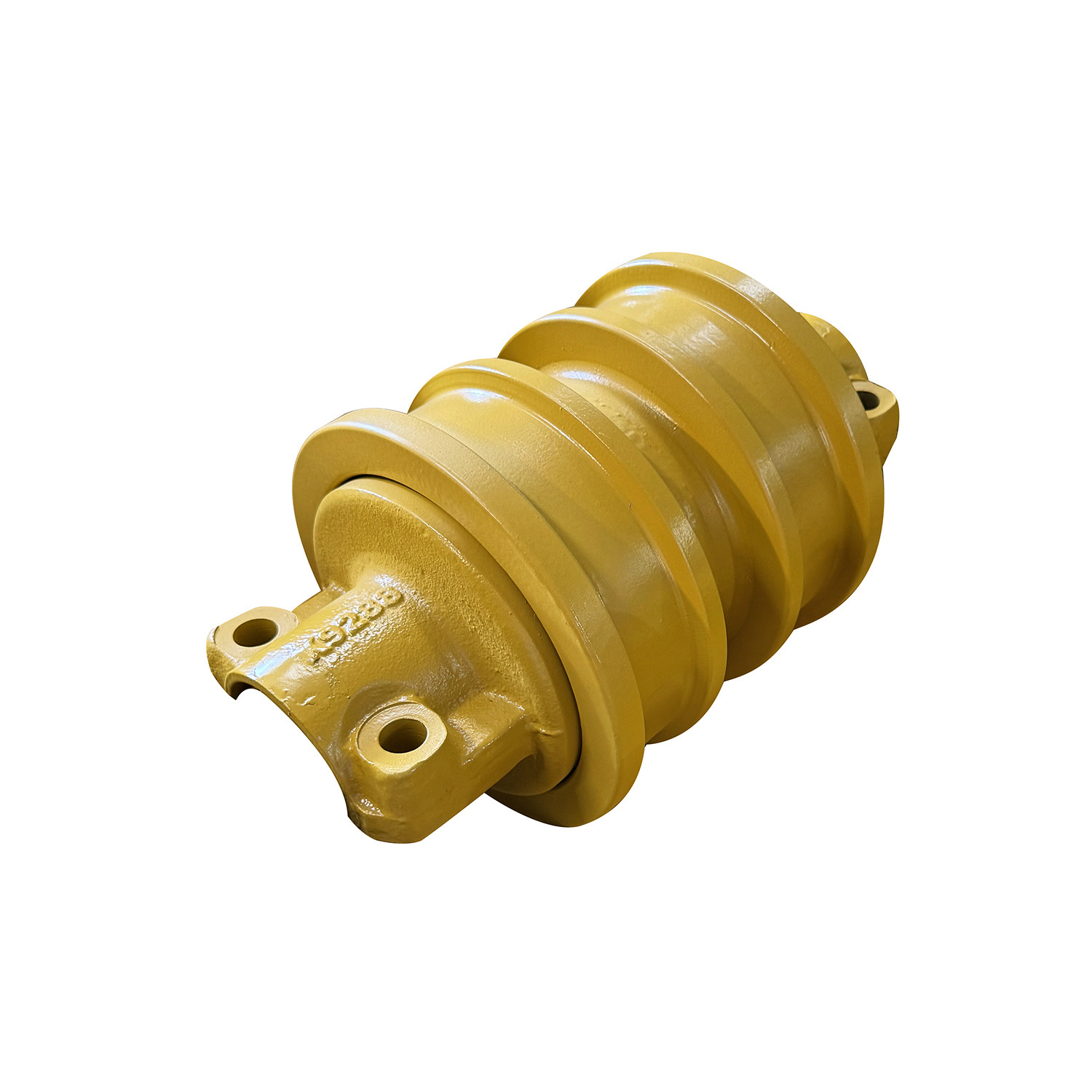

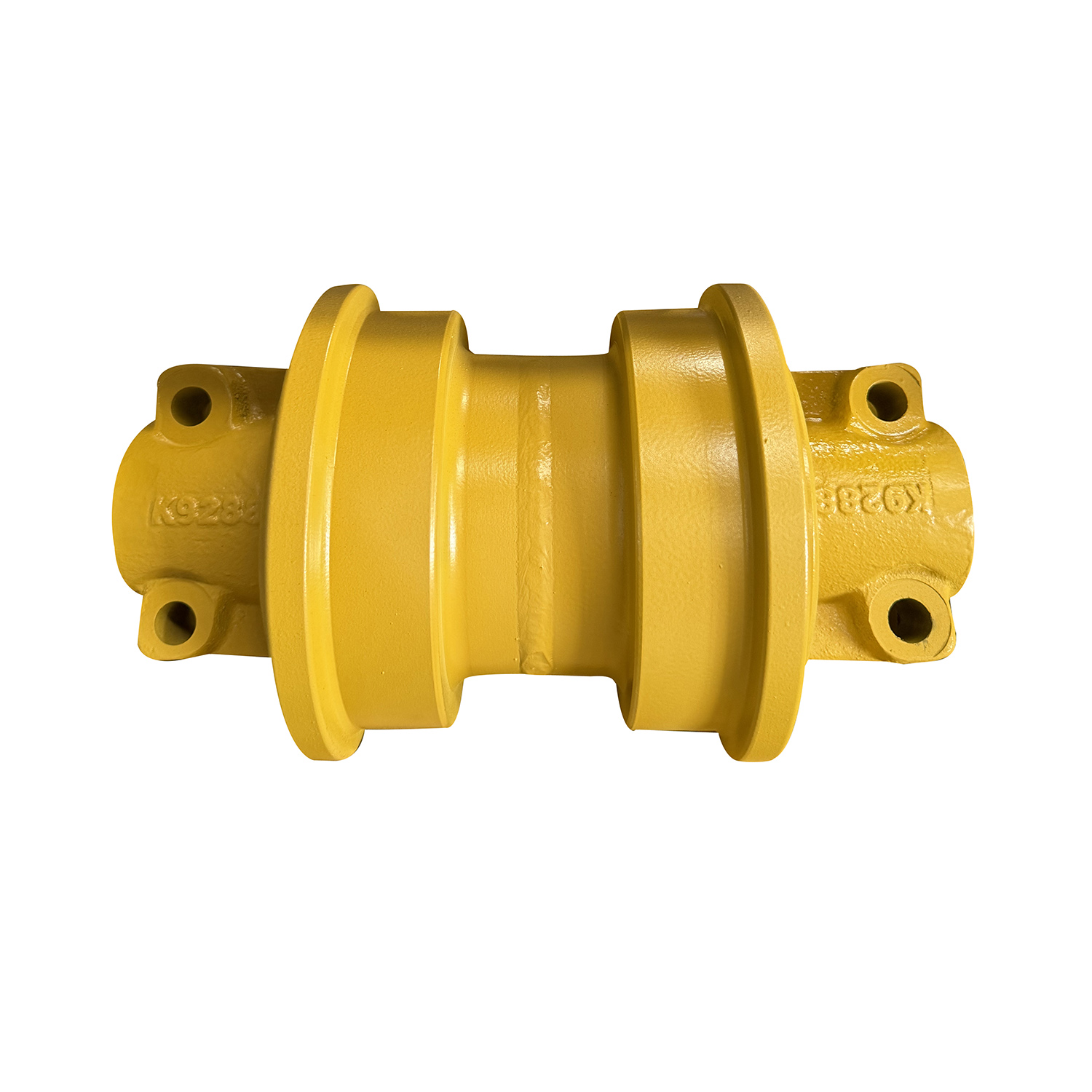

Caterpillar Bulldozer Track Roller D5M/D5N
阅读：
Tack offers a complete range of track rollers for both excavators and bulldozers. Bottom rollers for bulldozers have a large running surface due to mobile working. Tack rollers are produced with high-quality steel and special heat treatments to make excavator and dozer rollers extra tough and thus wear-resistant . The bottom rollers have a larger oil reservoir, so that the roller can be cooled sufficiently, our production is finished with precision tools, high-grade seals and bronze bushings to greatly improve oil leakage problem. Based on all the strict requirements in production we can guarantee a long service life , even with intensive use or in extreme working conditions.
- 小松D37EX-22推土机专用机油
- 小松D51EX-22推土机分火头
- 小松D85EX-15推土机主泵
- 泉州未来时代SP105206，水温表，SW2240A3，标准价76.92，固定供应商：105247，固定供应商名称：天津诚为商贸有限公司，定价组描述：推土机/推土机
- 泉州未来时代卡特D9R履带式推土机，离合器活塞3P-2768，3P2768
- 小松D61EX-22推土机液压系统密封件
- 泉州未来时代推土机刀板，适用机型：D7H 7S，件号：7T6936*，安装位置：L/R，螺栓（用量）：6F0196（4），螺母（用量）：2J3505（4），垫圈（用量）：5P8249（4）
- 小松D39PX-22推土机门锁机构
- 小松D51EX-22推土机操作手册
- 泉州未来时代推土机备件，惰轮6691-21-4321，6691214321，102334246
Description
Tack offers a complete range of track rollers for both excavators and bulldozers. Bottom rollers for bulldozers have a large running surface due to mobile working. Tack rollers are produced with high-quality steel and special heat treatments to make excavator and dozer rollers extra tough and thus wear-resistant . The bottom rollers have a larger oil reservoir, so that the roller can be cooled sufficiently, our production is finished with precision tools, high-grade seals and bronze bushings to greatly improve oil leakage problem. Based on all the strict requirements in production we can guarantee a long service life , even with intensive use or in extreme working conditions.
Application
CATERPILLAR: D4H, D5M, D5N, D5G, D5K, D100v, D5C
Original Code
SF: 124-8237, 7G4836, CR6150, 10T0055AY2, 237-8201
DF: 124-8240, 7G4837, CR6151, 10T0056AY2
Specification
| Caterpillar Bulldozer Track Roller D5M/D5N | ||
| Model No. | D5M D5N | D5M D5N |
| Type | Single Flange | Double Flange |
| OEM NO. | 124-8237,7G4836 | 124-8240,7G4837 |
| Material | 50Mn | 50Mn |
| Technique | Forging | Forging |
| Mounting Distance | 298.7*88.9*Ø18 | 298.7*88.9*Ø18 |
| Weight | 34KGS | 36.8KGS |
| Surface Hardness | 52-56HRC | 52-56HRC |
| Hardness Deepth | 8-12mm | 8-12mm |
| Welding Operation | by ARC CO² welding | by ARC CO² welding |
| Machining Operation | CNC machine | CNC machine |
| Colors | Yellow or Black | Yellow or Black |
