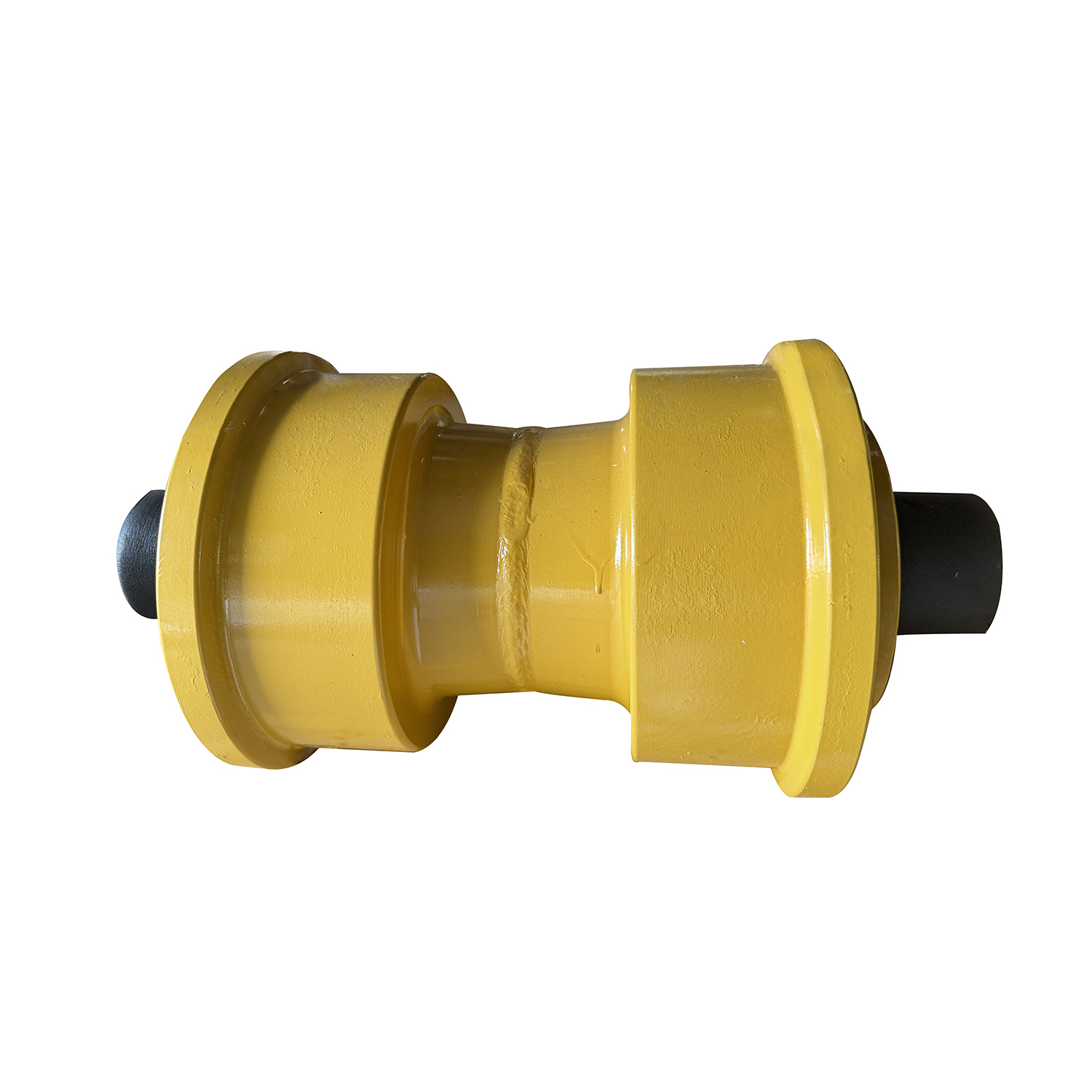

Caterpillar Bulldozer Track Roller D11N
阅读：
Tack offers a complete range of track rollers for both excavators and bulldozers. Bottom rollers for bulldozers have a large running surface due to mobile working. Tack rollers are produced with high-quality steel and special heat treatments to make excavator and dozer rollers extra tough and thus wear-resistant . The bottom rollers have a larger oil reservoir, so that the roller can be cooled sufficiently, our production is finished with precision tools, high-grade seals and bronze bushings to greatly improve oil leakage problem. Based on all the strict requirements in production we can guarantee a long service life , even with intensive use or in extreme working conditions.
Description
Tack offers a complete range of track rollers for both excavators and bulldozers. Bottom rollers for bulldozers have a large running surface due to mobile working. Tack rollers are produced with high-quality steel and special heat treatments to make excavator and dozer rollers extra tough and thus wear-resistant . The bottom rollers have a larger oil reservoir, so that the roller can be cooled sufficiently, our production is finished with precision tools, high-grade seals and bronze bushings to greatly improve oil leakage problem. Based on all the strict requirements in production we can guarantee a long service life , even with intensive use or in extreme working conditions.
Application
CATERPILLAR: D11N 4HK-1-UP/74Z-1-UP, D11R 9TR-1-UP/9XR-1-UP/AAF-1-UP，D11T
Original Code
SF: BERCO CR5614B. CATERPILLAR 184-6305, 6T9371.ITM A01119N0M00.VPI VCR5614V, 5984551(D11T)，2005701
DF: BERCO CR5615B. CATERPILLAR 184-6306, 6T9376.ITM B01119N0M00.VPI VCR5615V，1846306
Specification
| Caterpillar Bulldozer Track Roller D11N | ||
| Model No. | D11N | D11N |
| Type | SF | DF |
| OEM NO. | 184-6305 | 184-6304 |
| Material | 40mn2 | 40mn2 |
| Technique | Forging | Forging |
| Mounting Distance | / | / |
| Weight | 187.5KGS | 192KGS |
| Surface Hardness | 52-56HRC | 52-56HRC |
| Hardness Deepth | 8-12mm | 8-12mm |
| Welding Operation | by ARC CO² welding | by ARC CO² welding |
| Machining Operation | CNC machine | CNC machine |
| Colors | Yellow or Black | Yellow or Black |
