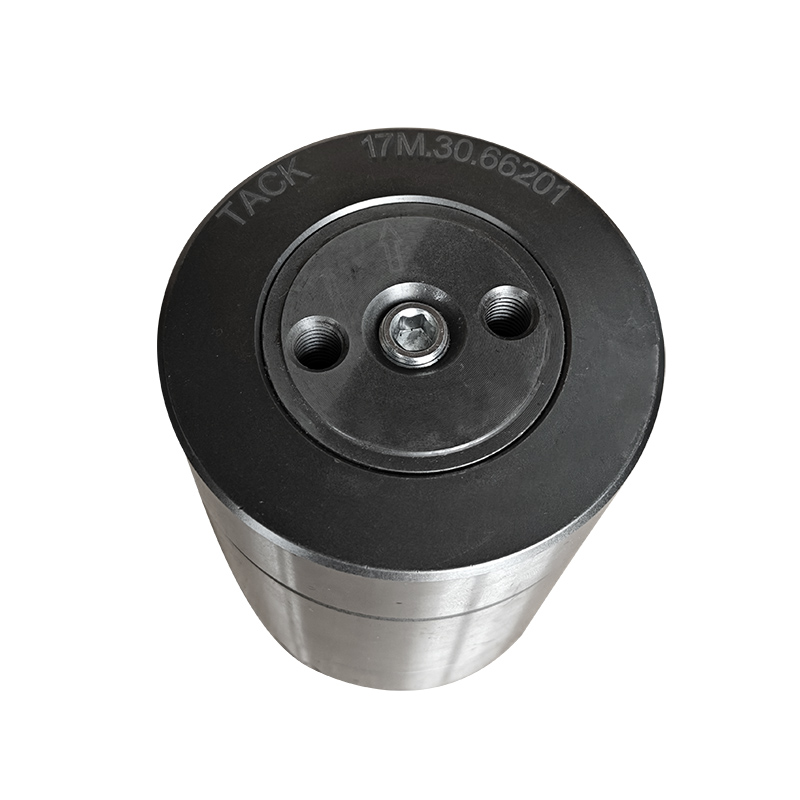

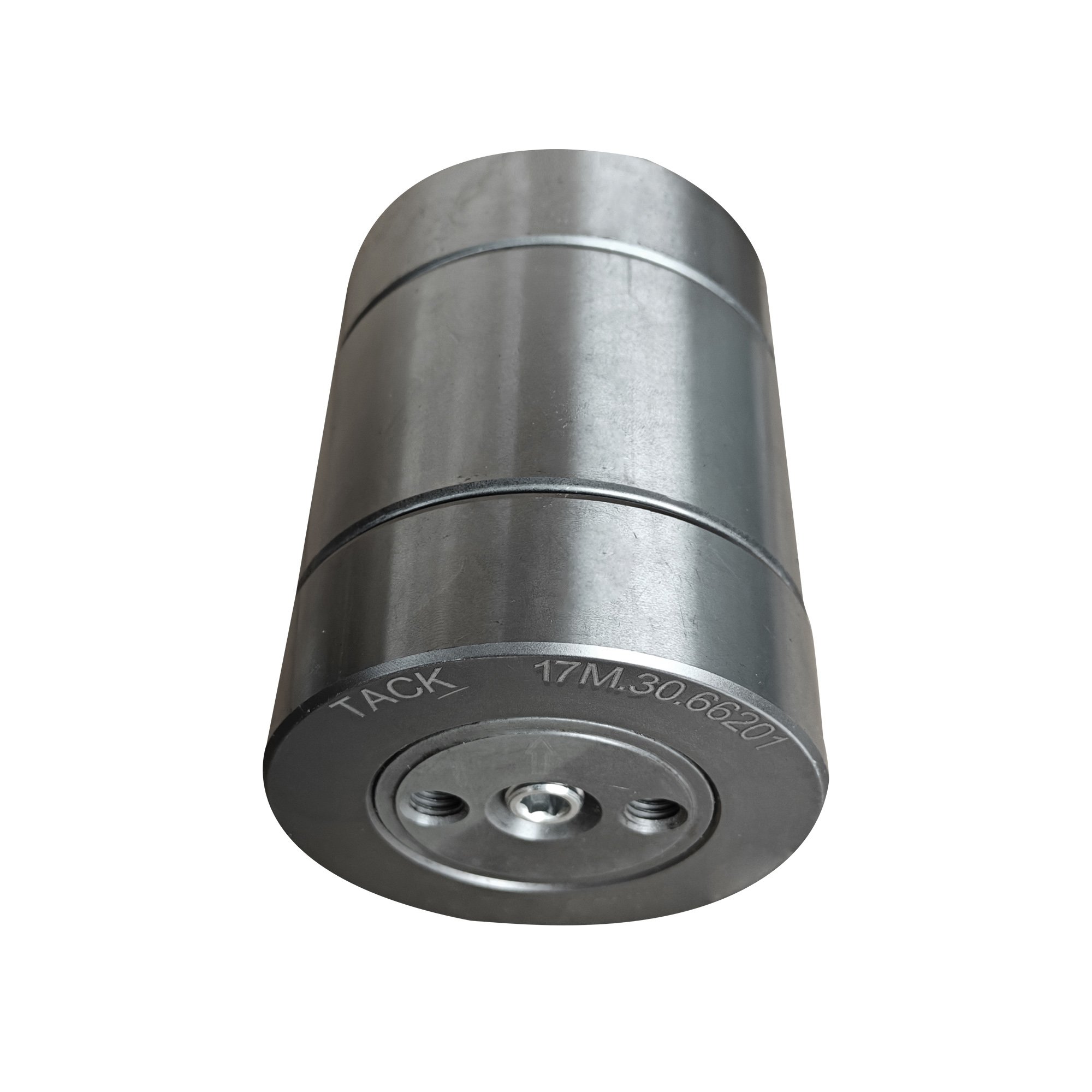

Komatsu Pin As Cartridage D275 Bogie pin

阅读：

Our heavy duty cartridge pins are made of a special alloy steel and undergo a special heat treatment to sustain severe and continuous load and impact conditions. Filled with high quality lubricating oil, during the use of mechanical seals, the lubed surfaces constantly renew themselves. This process is a direct factor that increases the service life which is repeated during the use of the product in the machines.
Strict controls and accurate analysis guarantee the high quality standard of TACK bogie pins , ensuring top performance. TACK bogie pins stand out for their excellent friction resistance, also at extremely temperature conditions. They have proven themselves in various regions of the world with the good quality and durability resulting .
Till now we have available bogie pins for bulldozers of Caterpillar D8N, D9N , D10N , D11N and Komatsu D155, D275, D375 and D475, which can cover almost all regular models.

产品详情

Description

Application

KOMATSU: D275

Original Code

17M-30-56201, 17M-30-66201, 17M-30-59200, 17M-30-66200, 17M-30-69200

Specification

Model Name	Application	Original Codes
Caterpillar Bogie Pin Cartridge Pin 7T-9307	D8L,D8N,D8R,D8R II, D8T,D9N,D9R,D9T,CAT 578,CAT 583,PL72	7T-9307,311-1298
Caterpillar Bogie Pin Cartridge Pin 7T-9309	D9L,D10N,D10R, D10T,D10T2,CAT 589	7T9309,251-3273,393-1127,358-5259,598-1330,598-1329
Caterpillar Bogie Pin Cartridge Pin 7T-9311	D10 D11N,D11R,D11T	7T9311,251-3280
Komatsu Pin As Cartridage D155 Bogie pin	D155	17A-30-46201, 17A-30-46202,17A-30-46231
Komatsu Pin As Cartridage D275 Bogie pin	D275	17M-30-56201,17M-30-66201, 17M-30-59200, 17M-30-66200, 17M-30-69200
Komatsu Pin As Cartridage D375 Bogie pin	D375	195-30-69901 195-30-62400 195-30-62100 195-30-66710, 195-30-62800,195-30-69400,195-30-69701
Komatsu Pin As Cartridage D475 Bogie pin	D475	198-30-32900, 198-30-32800, 198-30-68700
